Design & Structure

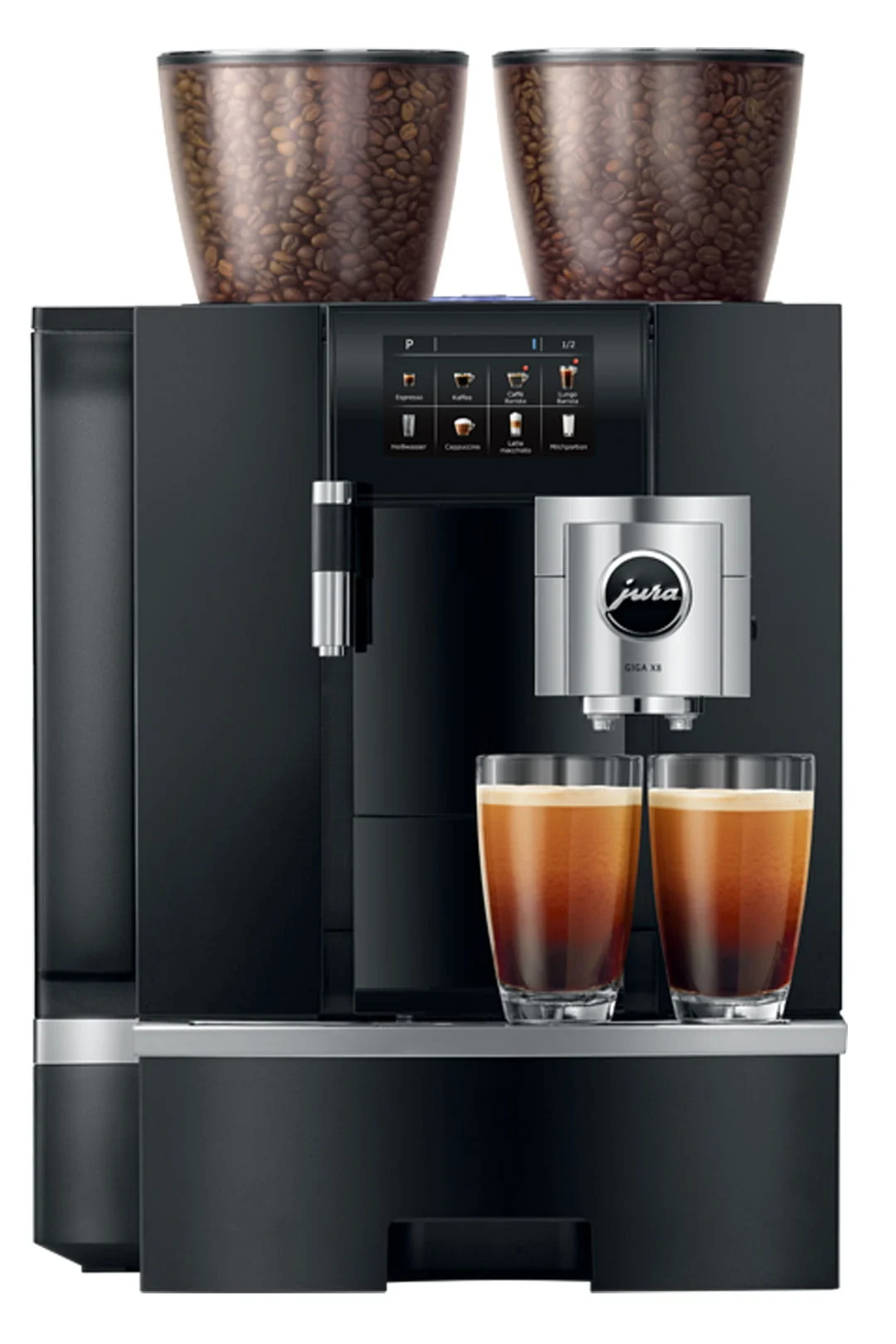

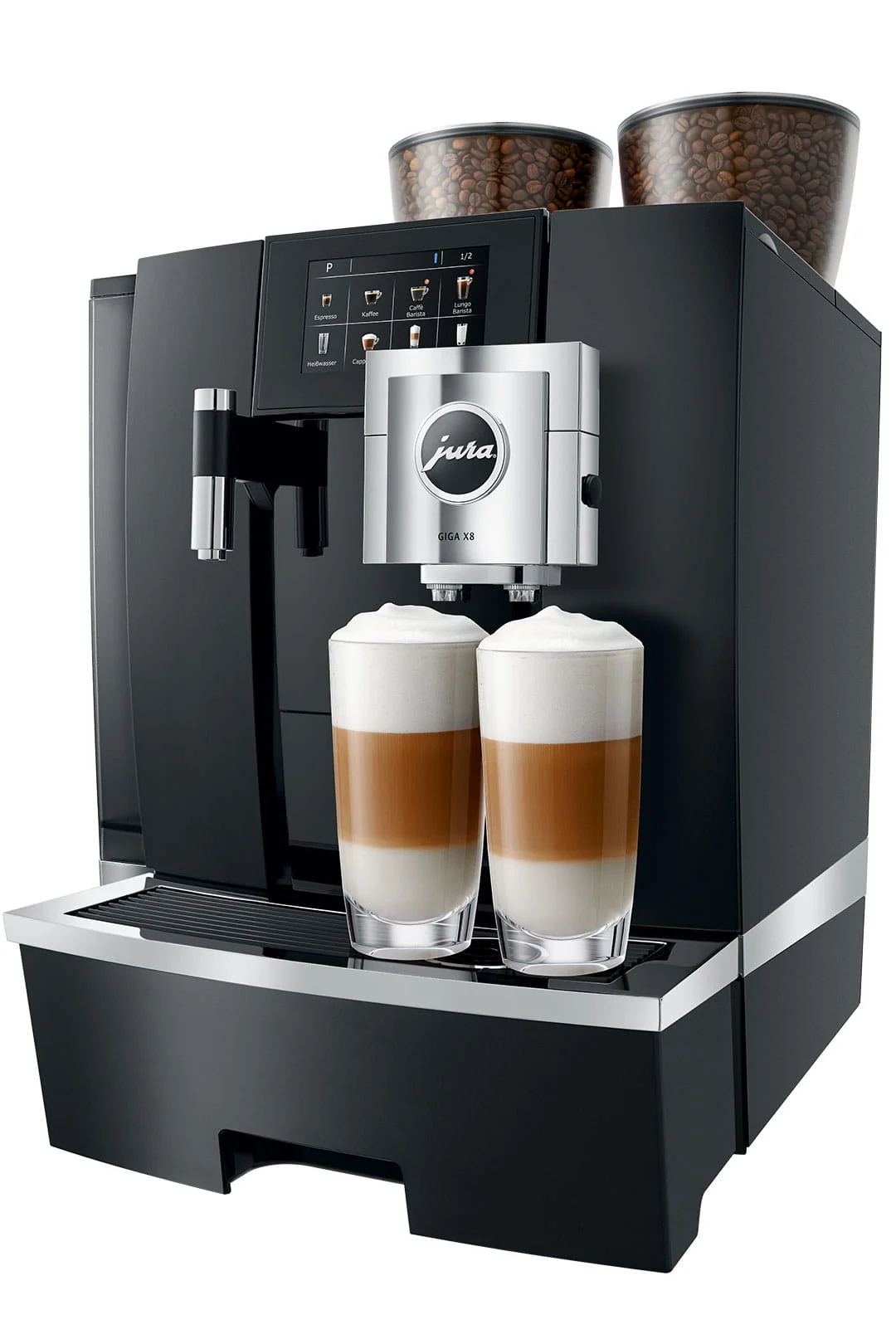

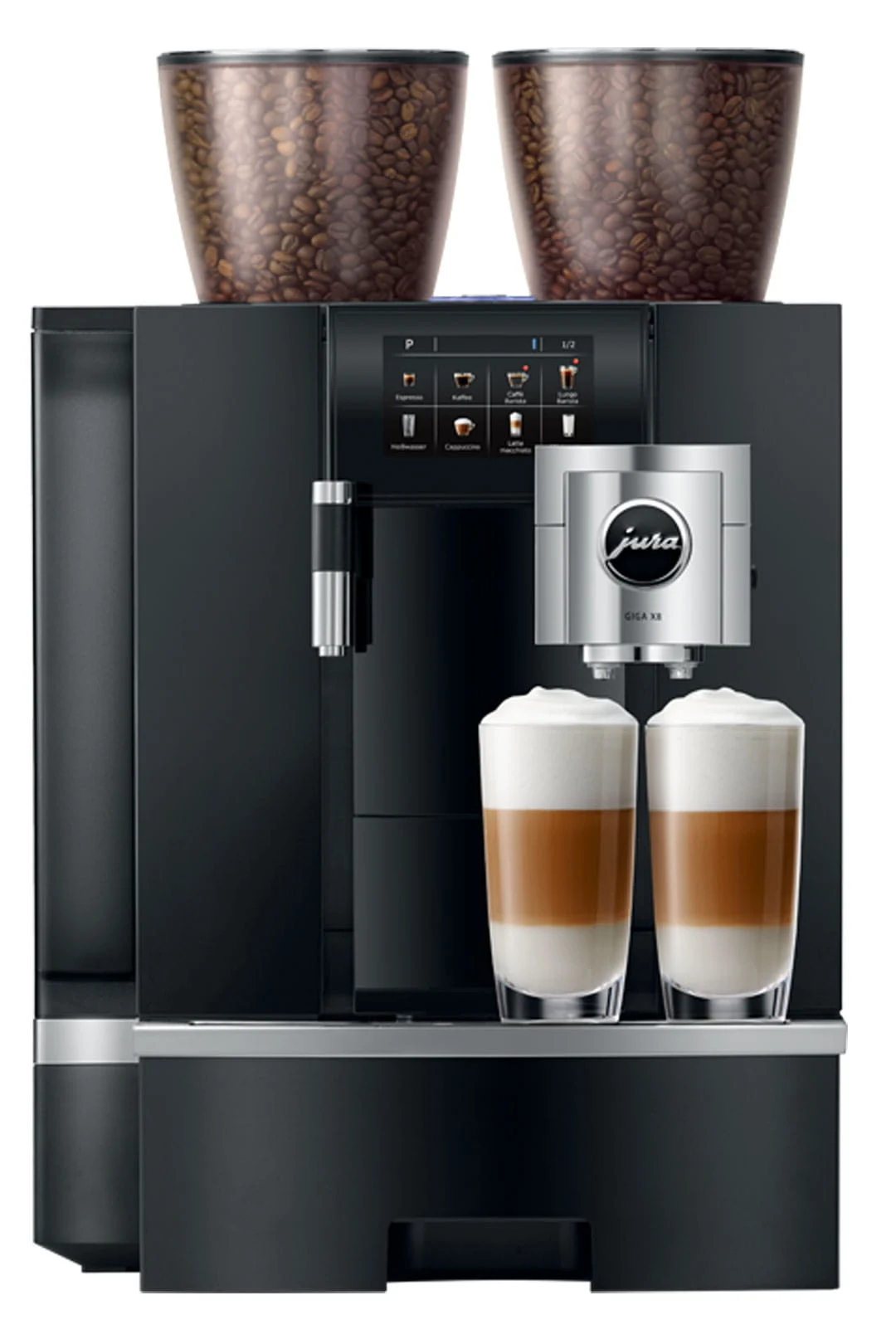

At 370 × 565 × 497 mm, the Jura GIGA X8 Professional (art. no. 13742) requires significantly more floor space than conventional compact office machines. According to the user manual and product sheet, the unit weight is approximately 22 kg, so maintenance and installation effort is non-trivial. In workplaces with limited space, the machine quickly reaches its limits: the intended location requires not only the footprint but, according to technical documentation, a minimum of 750 mm total height for comfortable access to bean hoppers and water tank. This means that typical wall-mounted cabinet arrangements in office kitchens are often ruled out. For mobile locations, the machine is scarcely practical due to weight and dimensions. For installations into furniture, Jura also requires minimum bore holes of 35 mm (waste water) and 70 mm (coffee grounds disposal) in the worktop — those without direct access to disposal must plan for additional effort [Sources: User Manual p. 60; Technical Documentation pp. 1–3; Product Sheet p. 1].

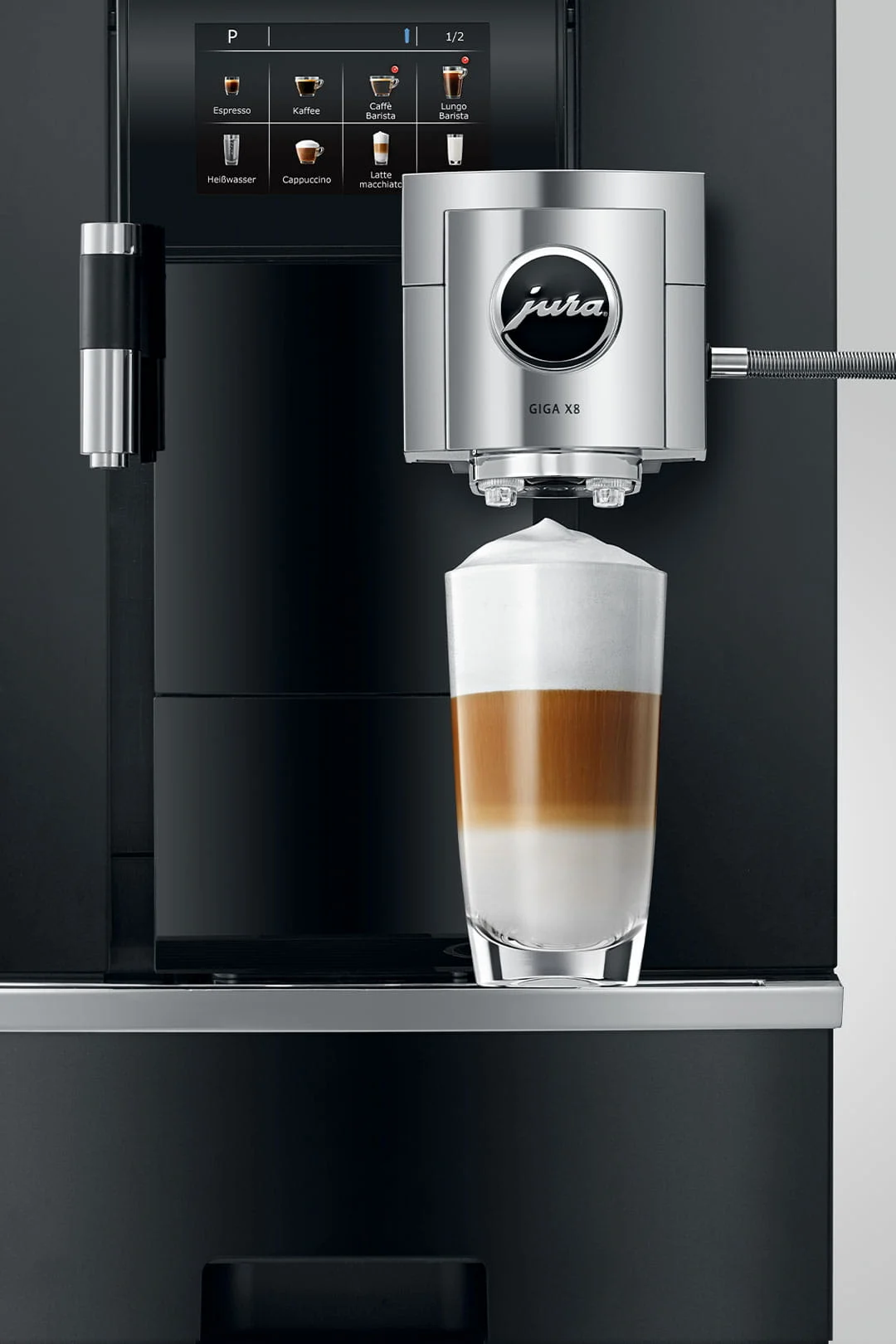

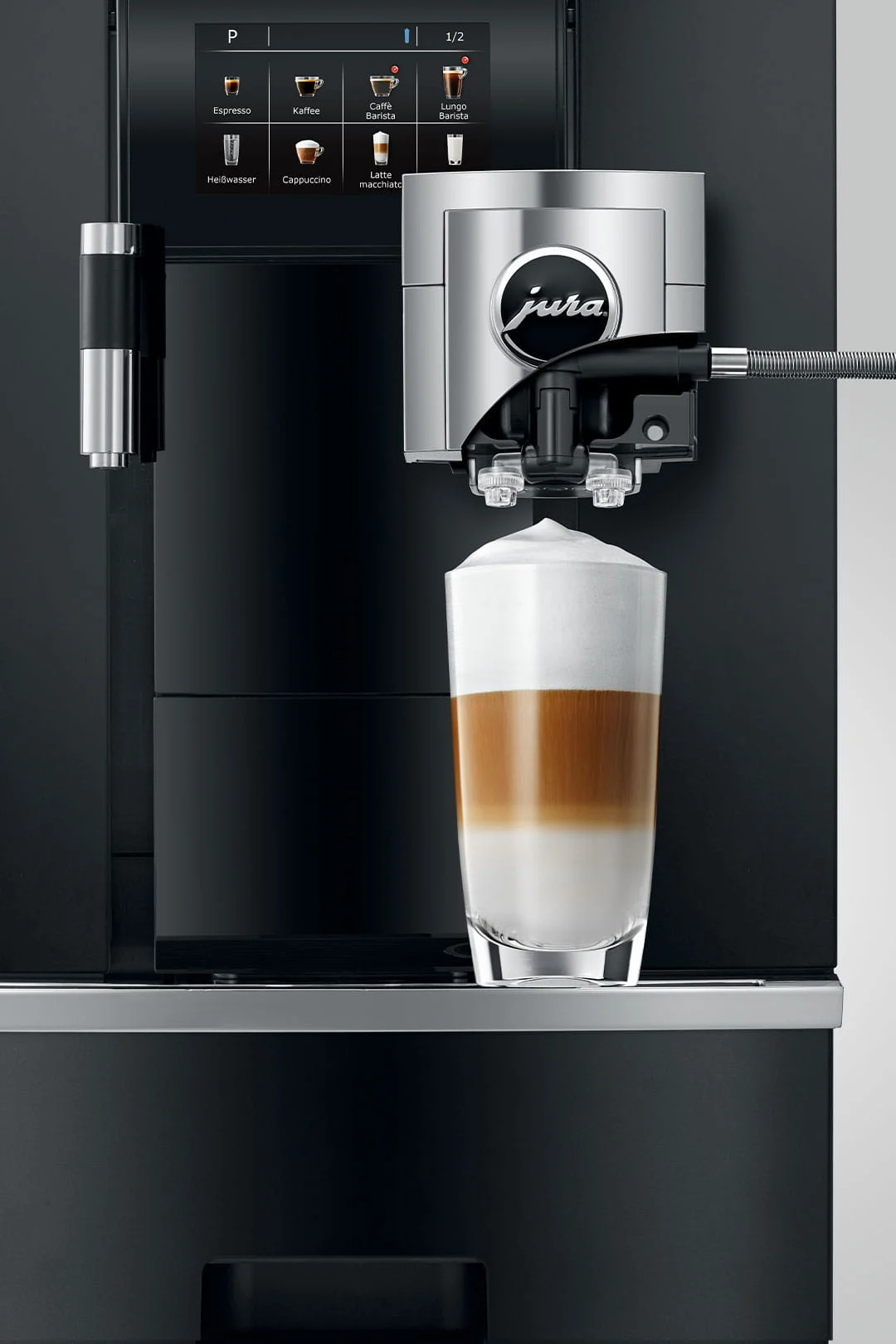

The front is finished in 3 mm aluminium and the housing throughout is black (colour variant: Aluminium Black) – according to the manufacturer, designed for durability and easy maintenance. Gap spacing, button elements and thumbwheel are documented as robust and fail-safe, though no independent long-term wear assessment is available. The combined outlet is adjustable in both height and width (70–159 mm high, 20–50 mm wide) to accommodate different cup sizes. The separate hot water outlet is adjustable in height between 69 and 165 mm. For large jugs or very wide cups, the design has inherent limitations.
The control concept combines a central TFT colour display with a physical rotary switch and eight large, freely assignable product buttons on the front. Unlike newer GIGA X8 versions, the generation reviewed here does not offer touchscreen control. It is a colour LCD with text-based menu navigation and status icons [Product Sheet p. 1]. For gloved operation and harsher environments this is robust, but appears cumbersome and less intuitive compared to current market trends.
For daily maintenance, Jura's documentation specifies the following access points: the 5 l water tank and the two bean hoppers (each with 650 g capacity) are accessible from the top. Side access panels are absent — this limits placement alongside other cabinet elements. In service situations, this can impose separate demands on the location, especially if the machine is installed with under-counter grounds disposal or waste water connection.
Overall, the construction is designed for durability and high-frequency use but requires significantly more space, access and load-bearing capacity for installation and operation than standard concepts for small teams. Those planning flexible, mobile or space-constrained locations will encounter hard limits here and must expect significant additional effort in installation and service.
