Jofemar Vision EsPlus V8

This article was created with AI assistance and checked automatically. A human review before publication is not documented.

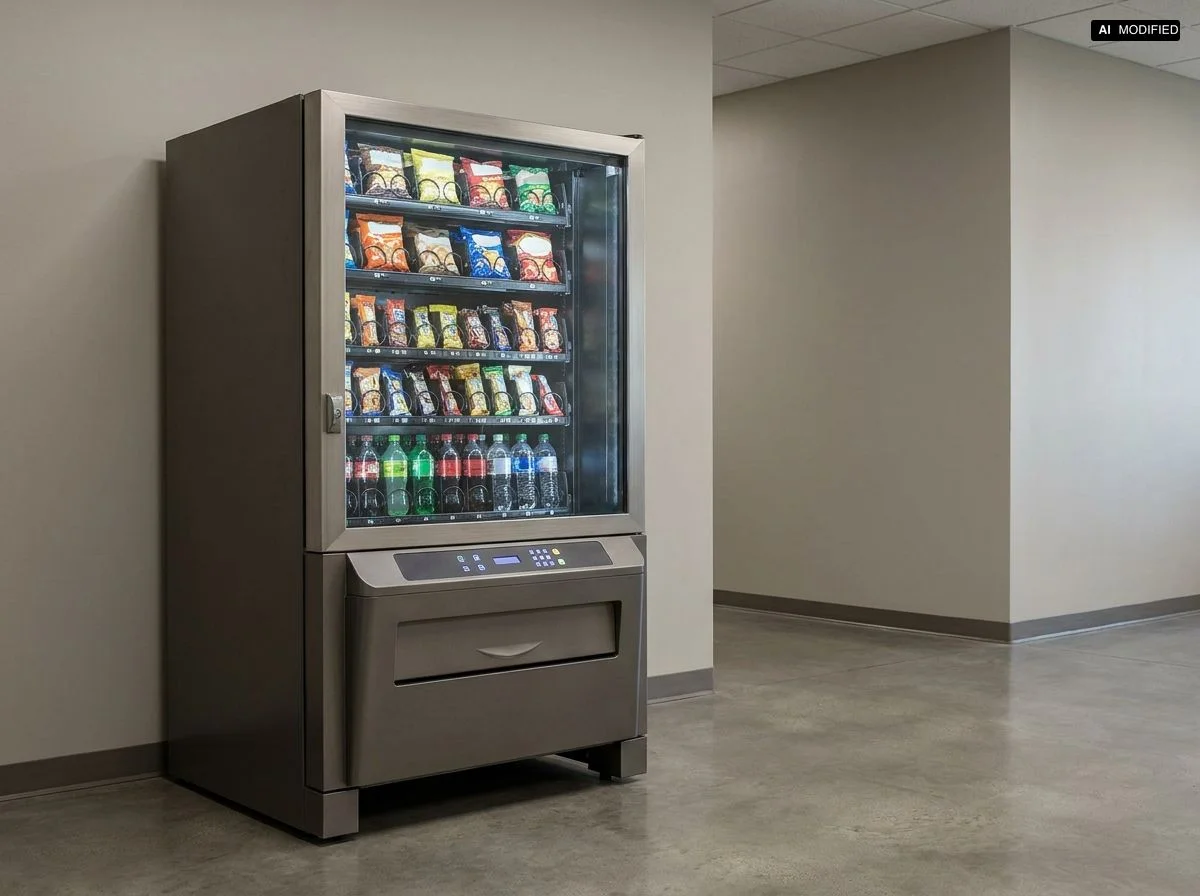

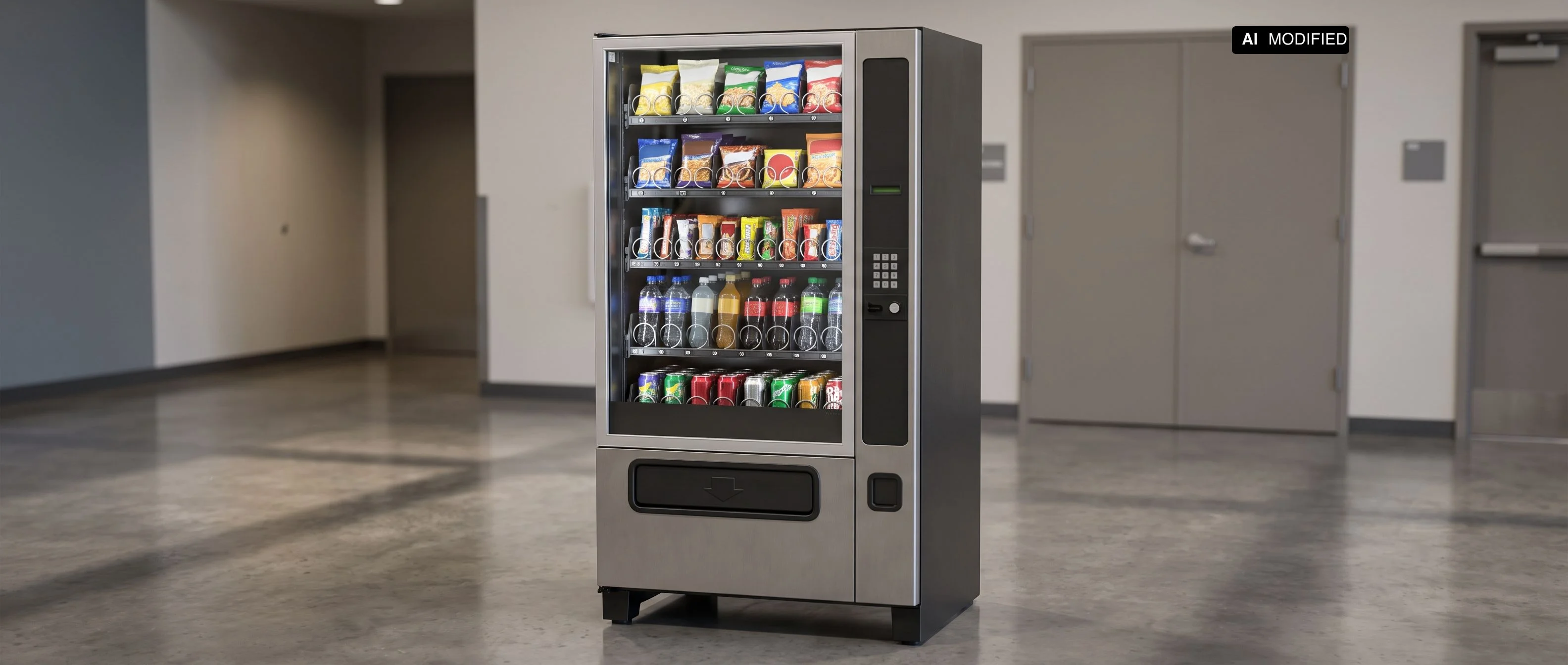

The selected catalog configuration is the Refriger/R290 version documented in Jofemar’s ESPLUS V8 vending machine catalogue. Its stated dimensions are 800 mm wide, 1835 mm high and 1025 mm deep. The cabinet weighs 337 kg. Those figures describe a full-size floor-standing machine, not a countertop unit or a compact installation for a narrow alcove. Site planning therefore has to cover the complete footprint, delivery route and floor position before procurement.

The weight is a hard installation constraint. At 337 kg, moving the cabinet through doors, corridors or lifts requires a route assessment and suitable handling arrangements. The dossier does not document lifting points, castor specifications or a minimum floor loading value. Those details remain open questions for the supplier. A small site with restricted access can therefore create an installation problem even when the available floor area appears sufficient.

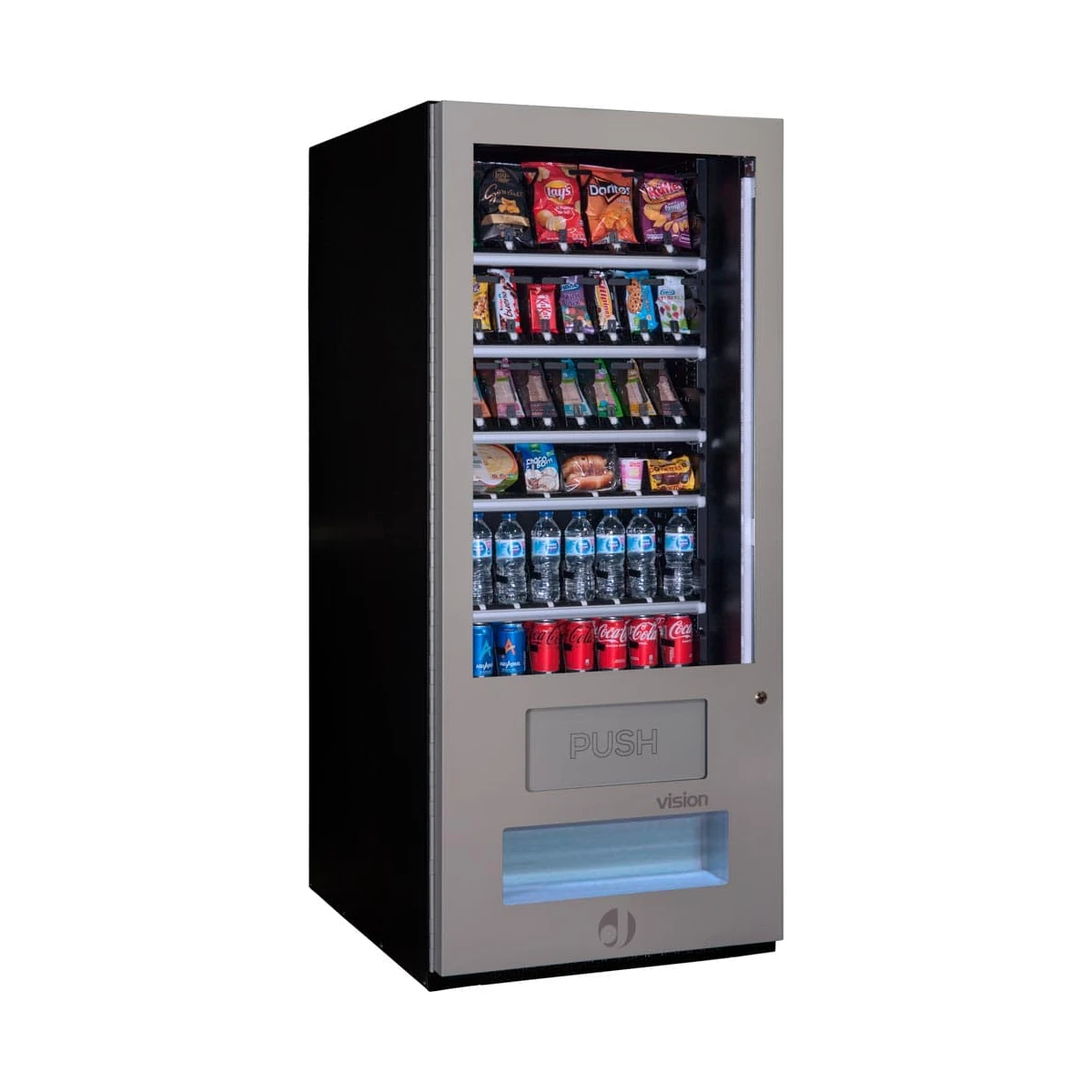

The front display window measures 714 mm wide by 1169 mm high, according to the Jofemar product information. This gives operators and customers a broad visible product area. The legacy Vision Es-Plus technical manual, dated 29 April 2011, describes galvanized steel and double-glazed safety glass. These are historical platform details, not independent confirmation of the current R290 V8 bill of materials. Obtain the selected cabinet and glazing specification with the quotation. They also do not verify a touchscreen, display size, button layout or payment media. Claims about a particular interface would go beyond the available evidence.

The selected catalog configuration is the Refriger/R290 version documented in Jofemar’s ESPLUS V8 vending machine catalogue. Its scalar data are 800 mm width, 1,835 mm height, 1,025 mm depth, 337 kg and 370 W rated power. These figures belong to the chosen catalog configuration. An older manufacturer sheet for the Bluetec V8 lists differing values, including 300 kg and 340 W. That is a configuration and document discrepancy, not a measured test result. The two documents should not be merged into one specification set.

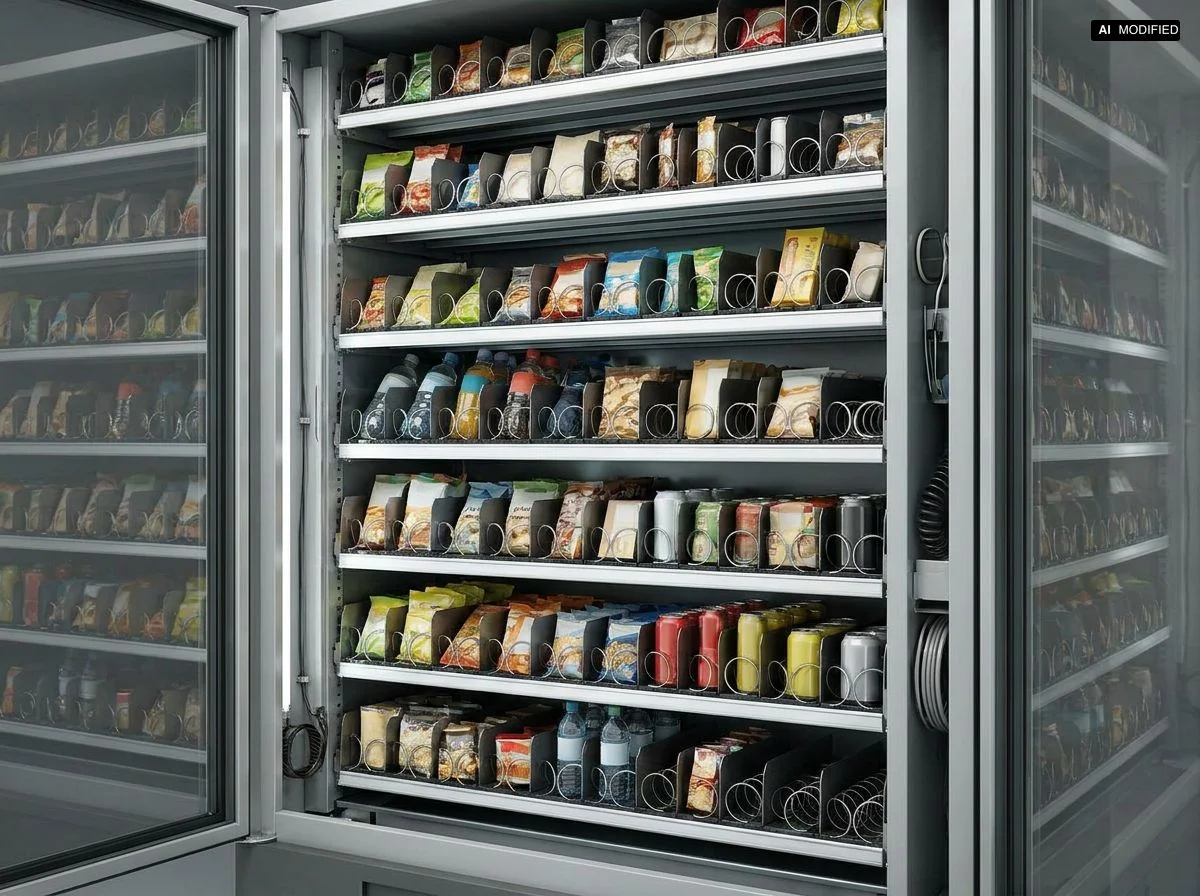

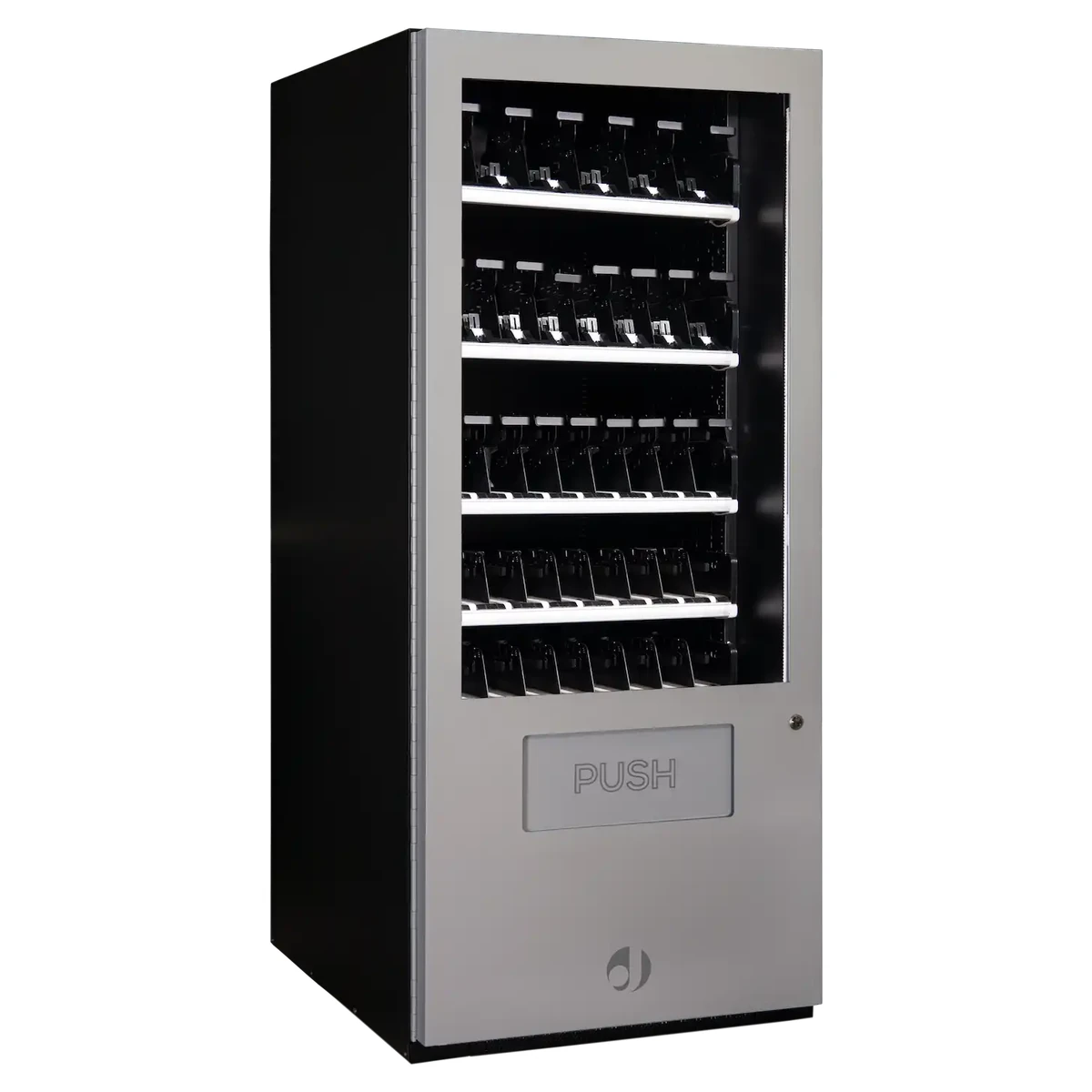

The machine supports up to 8 trays with up to 10 height-adjustable channels per tray. The sources do not provide a verified total unit capacity, so the channel count must not be presented as a guaranteed number of saleable products. A large-capacity elevator and the EasyFlex dispensing system handle product delivery. Photocells detect whether a product has reached the delivery area. This is more relevant for fragile or mixed goods than a simple spiral-only mechanism, although the dossier contains no independently measured failure rate.

FIFO stock rotation is documented. Expiry dates can be programmed by selection number or channel, and expired products can be inhibited. That gives operators a control point for food and drink ranges. It does not replace physical stock checks, because the sources do not document how dates are entered, audited or synchronized with inventory records. The optional cooling unit and the Refriger/R290 variant support a stated temperature range of 4–25 °C. The reviewed evidence identifies R290 for the ESPLUS R290 V8 configuration. It does not establish a universal cooling specification for every EsPlus V8 variant.

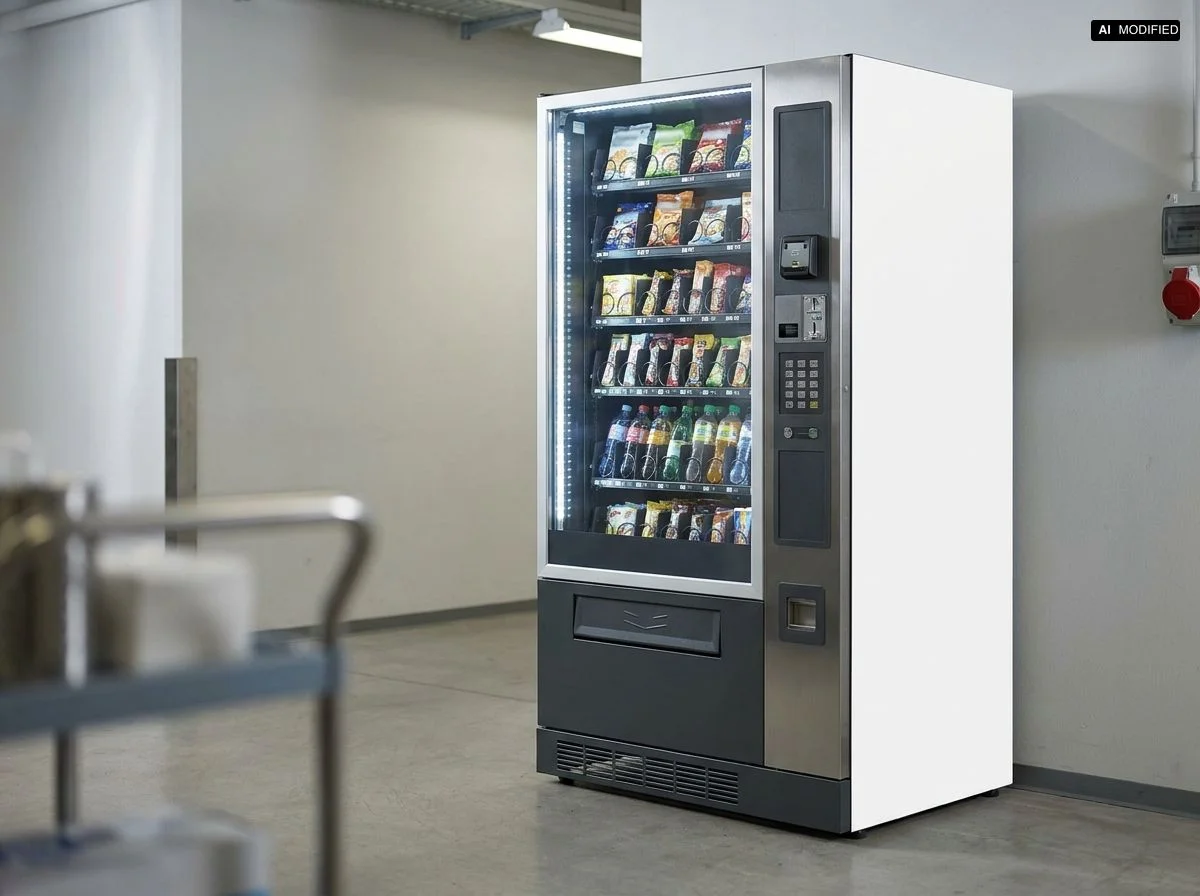

The manufacturer-hosted legacy manual, dated 29 April 2011, does contain cleaning instructions: it covers periodic care and spill cleaning for glass, the elevator, delivery bin and trays, plus condenser cleaning. This is useful platform background, but not a current, site-specific hygiene schedule for the R290 V8. Obtain the applicable service revision and allocate trained maintenance responsibility before commissioning.

Service access is documented more clearly than routine maintenance. The machine uses a large-capacity elevator with an EasyFlex dispensing system, photocell product detection and anti-vandal cabinet locking. Those components indicate that product delivery and cabinet security are engineered service areas, not proof of a specific maintenance interval. The technical manual describes the Vision Es-Plus platform and should be checked for access procedures applicable to the selected configuration. (Vision Es-Plus technical manual)

The selected catalogue configuration is the Refriger or R290 version documented in the Jofemar catalogue: 800 mm wide, 1,835 mm high, 1,025 mm deep, 337 kg and 370 W rated power. These values should not be mixed with the older Bluetec document, which reports different figures. The discrepancy is a configuration or document difference, not a measured service result. (ESPLUS V8 vending machine catalogue) The reviewed dossier does not verify standby power, noise, repair prices, spare-part prices or Germany-specific service coverage. Those items remain contractual questions.

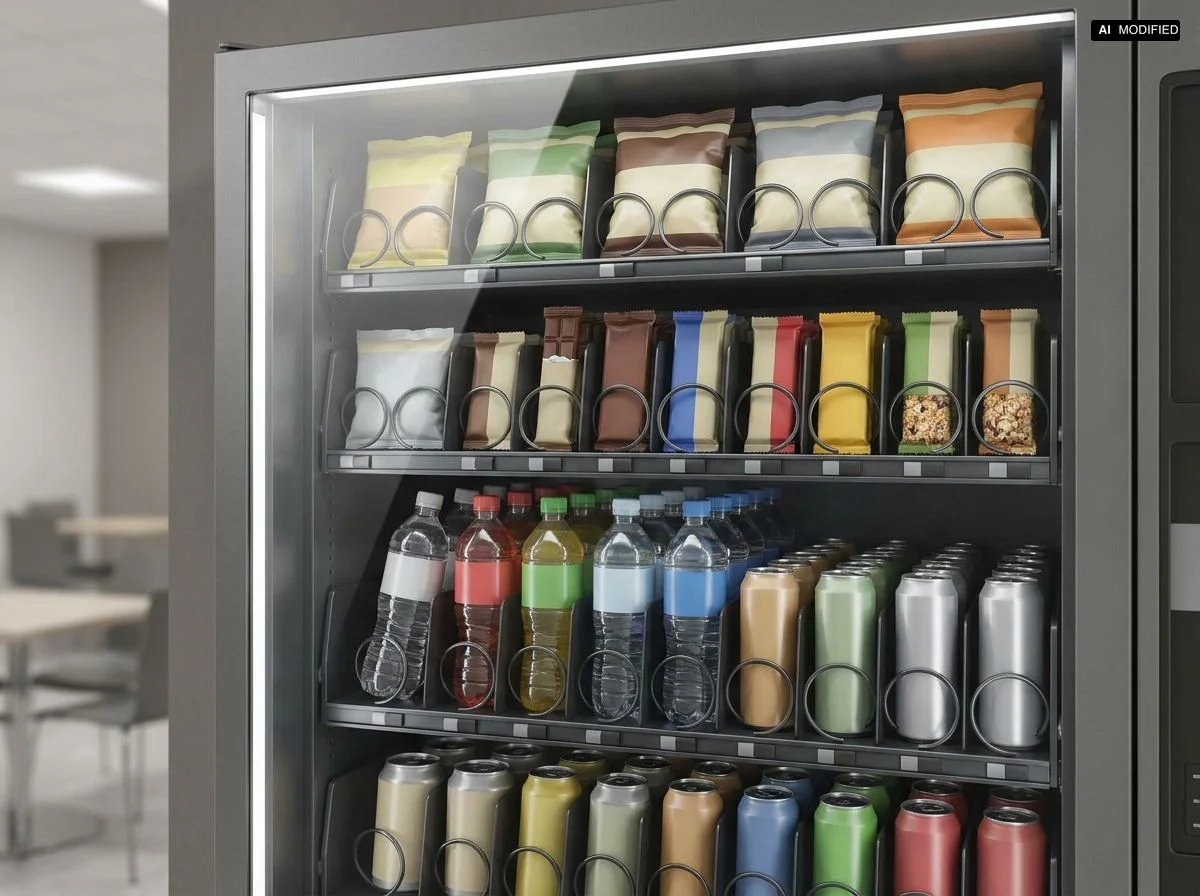

The selected Refriger/R290 catalogue configuration supports up to eight trays with up to ten channels per tray. The manufacturer also states a total product load capacity of 100 kg for the V8 model. This is a verified limit for how much merchandise (by weight) can be loaded simultaneously into the machine, as specified in both the ESPLUS V8 vending machine catalogue and the manufacturer product page. While multiplying the number of trays and channels gives a theoretical slot count, it does not provide a confirmed number of saleable products, as item dimensions, channel settings and dispensing method affect actual per-channel loading. Daily throughput is not published. Stock rotation should therefore be planned from sales data, not from maximum load capacity alone.

Configuring up to ten channels per tray gives the operator room to separate product lines instead of filling the cabinet with one narrow assortment. The documented machine supports snacks, food and drinks, with an optional cooling unit and an ESPLUS R290 V8 refrigerated variant. The reviewed manufacturer page specifies a temperature range of 4–25 °C for the relevant configuration. Chilled and ambient merchandise should not be treated as interchangeable stock. The operator must confirm which configuration is being quoted, because the product mix, cooling requirement and replenishment plan depend on it. (VISION ESPLUS V8)

The large-capacity elevator and EasyFlex dispensing system are intended for products that require controlled delivery rather than a simple fall through the collection area. Photocells detect product delivery. FIFO stock rotation is documented, and expiry dates can be programmed by selection number or channel. Expired products can be inhibited. Those functions matter for mixed food ranges, where a broad assortment is only useful if older stock moves before newer deliveries. The sources do not establish how many products fit into each channel or how the mechanism performs with every package shape. (ESPlus Bluetec V8)

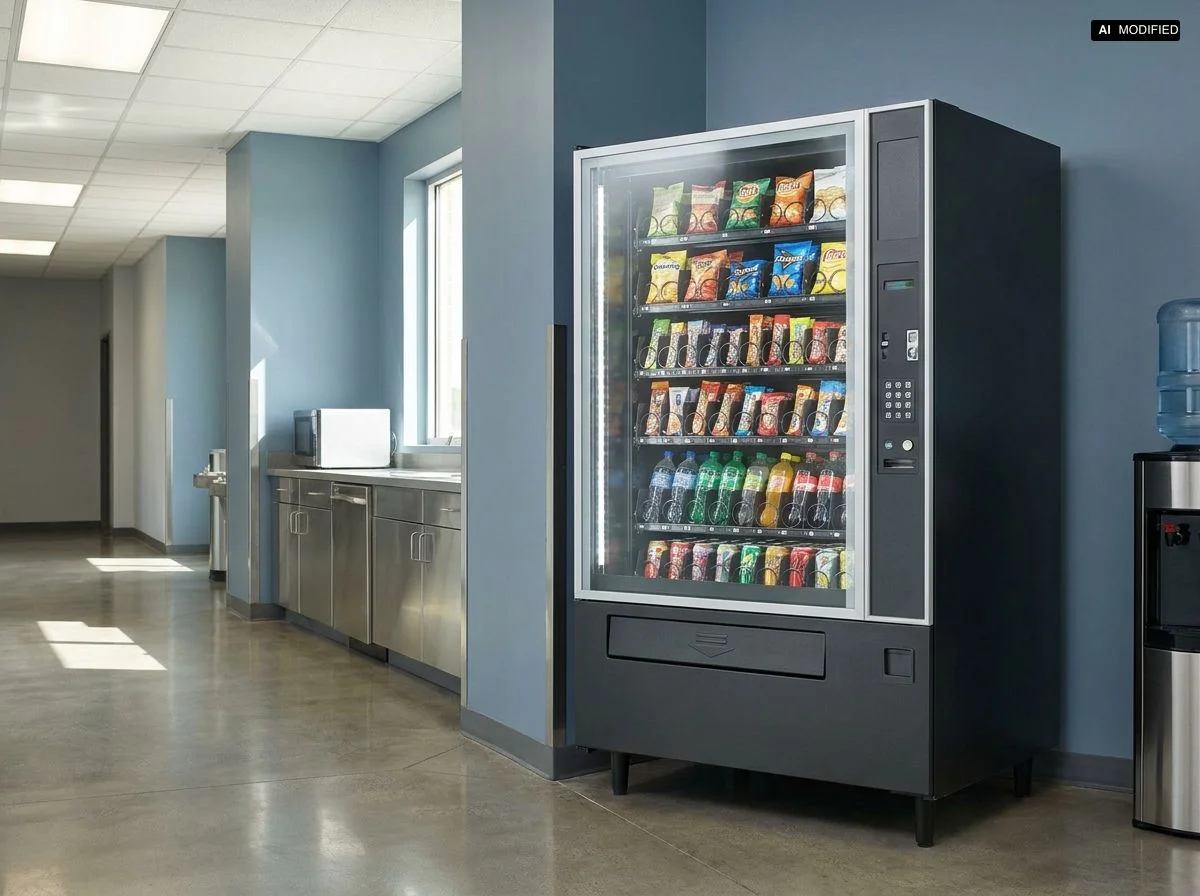

A verified net purchase price for the Jofemar Vision EsPlus V8 was not found in the reviewed manufacturer catalogue, product pages or distributor documents. Jofemar presents the machine as an enquiry product rather than publishing a purchase price. The appropriate procurement statement is therefore “price on request”, not a guessed range or a recycled figure from another vending machine. The Jofemar product page and the ESPLUS V8 catalogue are the relevant starting points for a quotation.

The reviewed configuration is the Refriger/R290 version documented in the manufacturer catalogue. Its stated dimensions are 800 mm wide, 1835 mm high and 1025 mm deep. The documented weight is 337 kg, with a rated power figure of 370 W. These values define the procurement case: delivery access, floor positioning and installation planning are material cost drivers before any sales price is assessed. A small site with limited access can require more preparation than the catalogue specification alone suggests.

Cooling is an optional configuration feature, and the dossier identifies an R290 refrigerated variant. The reviewed material does not provide a verified purchase surcharge for the cooling unit, a service contract, installation labour, payment hardware. Those items must be separated in the quotation. Combining them into an invented upper price would create false precision.

Energy cost cannot be presented as a verified annual total here. EPREL lists annual energy consumption of 1,410.72 kWh/year for the Jofemar ESPLUS R290 V8 (registration 828553). This standardized registry figure is not a site-specific electricity bill. The 370 W figure is a rated power value, not a complete operating-cost forecast. Annual electricity expense requires a documented duty cycle, cooling configuration, operating hours and tariff. None of those inputs is established in the reviewed dossier.
